Beskrivelse

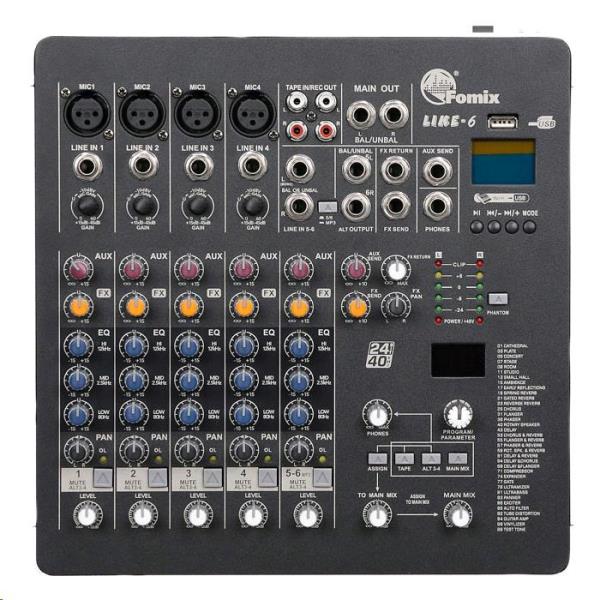

Professional 6 channel compact mixer
.Bulit in 99 kinds 24bit digital effects processor
.3-band EQ inputs
.1 stereo outputs
.1 Aux for effects,feedback and recording
.Rugged design and build,professional sound with digital MP3.
mixeren har bryter for phantom-matning.
Maximum levels
Mic Input:30 dBu
Line Input:21 dBu
All other input: 22 dBu
Mixer Rated Output
Main outs: +4 dBu
All other outs: +4 dBu
Maximum output: 22 dBu
Frequency response
Mic input to main output
+0, -1 dB,<10Hz to 80kHz
+0,-3 dB,10k ohms
Outputs: >100 ohms
EQ(each band): ±15dB
Mono Stereo Channel EQ
High:12kHz
High mid: 2.5kHz
Low: 80Hz
Størrelse:
B:26*H:7(med knapper)*D 26
