Beskrivelse

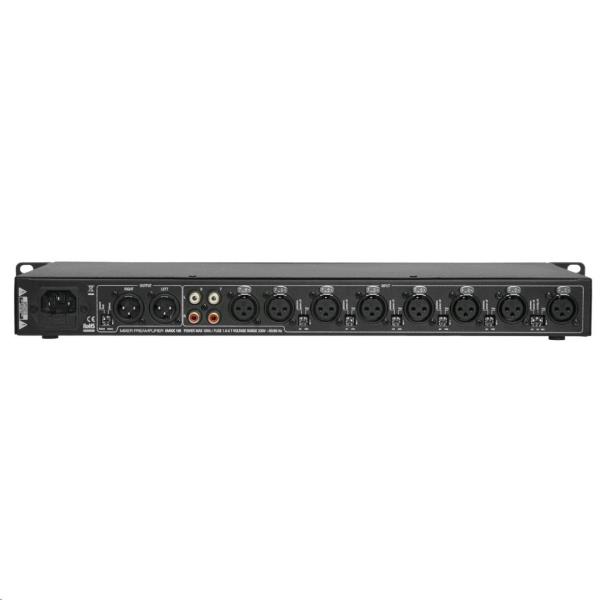

Simple, reasonably priced and good quality mixer preamplifier. Six balanced XLR, selectable gain, MIC/LINE inputs , two stereo RCA inputs in parallel to microphone XLR inputs. Phantom power is activated by external DIP switches on each universal XLR input. Priority input on/off selectable with DIP switch on first universal XLR input. Tone, balance and master control. Bi-color LED for signal indication and clip indication. Balanced XLR stereo output, ground lift and stereo/mono selection DIP switch. Ready for stereo mode. iMIX18 with built in preamplifier and mixer will be widely used in paging and background music applications.
Inputs 6 x universal XLR,
2 x stereo RCA in parallel to XLR
Outputs Balanced stereo XLR
Frequency response 20 Hz – 22 kHz
THD 0,3 % @ 1kHz
Phantom power + 40V
Dimensions 44 mm × 483 mm × 205 mm
