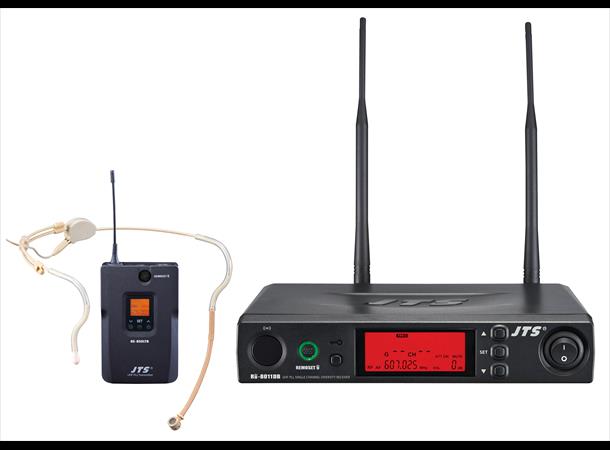

Trådløst system, Enkel mottager og kardioid hodebøyle


Ikke på lager, men kan restbestilles

Produktnummer: RU-8011DB/CM-214ULF Kategori:


This product is a full feature version of RU-8011D. It is built with detachable BNC antenna. Besides selectable
group and channel its frequency can be fine adjusted by interval of 0.025 MHz for multi system application.

Technical specifications

Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: 470~960 MHz
Frequency Setting: REMOSET U
Receiving Mode: Antenna Diversity
Bandwidth: 36MHz
S/N Ratio: >105dB(A)
T.H.D: 80dB
Rejection Ratio: >80 dB
Frequency Response: 50Hz~16KHz±2dB
Antenna Type: BNC Socket
Antenna Booster Power: DC12~15V/100mA
Display: LCD
Display Contents: Group, Channel, Frequency, Battery Level, Antenna
A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level,
Controls: Power ON/OFF, Group, Channel, Frequency, Mute Display,
Key Lock, Volume, Output Attenuaiton(XLR), Frequency Scan(ON/OFF)
Audio Output Level:
Ref/ ±22.5KHz Dev@1KHz Tone
?6.3 Phone Jack/ -10dBV
XLR Jack/ -4dBV(Line) ? -24dBV(MIC)
Audio Output Impedance: 600O
Squelch: Pilot Tone & Noise Mute
Output Connector:
1 independent balanced XLR and one Ø6.3mm unbalanced.
Power Supply: DC12~15V/300mA
Dimension (mm): 212.3mm(W)* 38.3mm(H)* 144mm(D)

Notes: Acutal product specifications may vary depending on region
