Lommesender For UF-20R mottaker, 530-605MHz


Ikke på lager, men kan restbestilles

Produktnummer: UF-20TB-530-JT Kategori:

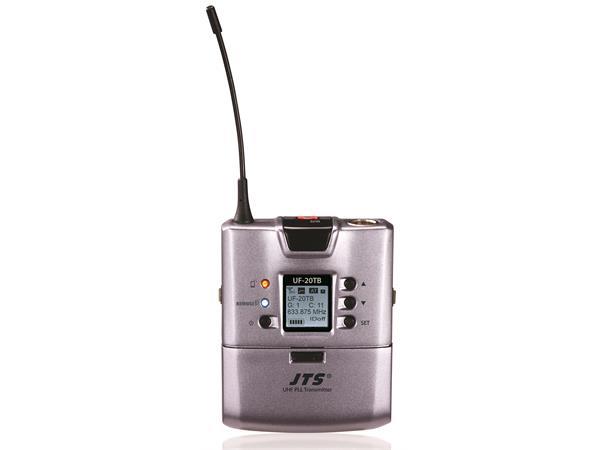

Professional Wideband Body-pack Transmitter.
Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.


2400 to 3000 selectable frequencies
Preset 15 groups each of up to 63 compatible channels
Phase-Locked Loop (PLL) synthesized tune
Extended dynamic range and smooth frequency response.
Adjustable transmission power between Low and High
The panel Lock-On function prevents tampering and RF interruption

Technical specifications

Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: UHF 470~960 MHz
Bandwidth: 60~75MHz Wideband
RF Outputs: Low / High
Stability: <±10KHz
Frequency Deviation: ±48KHz (Peak)
Chassis: Aluminium alloy
LCD Display: Group, Channel, Frequency, Battery
Status, User Name , GAIN Adjust
Controls: Power ON/OFF, AF Level, Frequency (Up/
Down), Lock-on Mode, REMOSET ID Pairing, RF
Output Adjust
Output Connector: 4P Mini XLR
Spurious Emissions: <-50 dBC
Audio Frequency Response: 50Hz~18k Hz
Battery: AA NiMH x2
Dimensions: 62mm(W)x80.3mm(H)x22.6mm(D)
Weight: 93g

Notes: Actual product specifications may vary
depending on model and region.
