Forsterker 2x350W 8 ohm


Ikke på lager, men kan restbestilles

Produktnummer: AQ2350 Kategori:

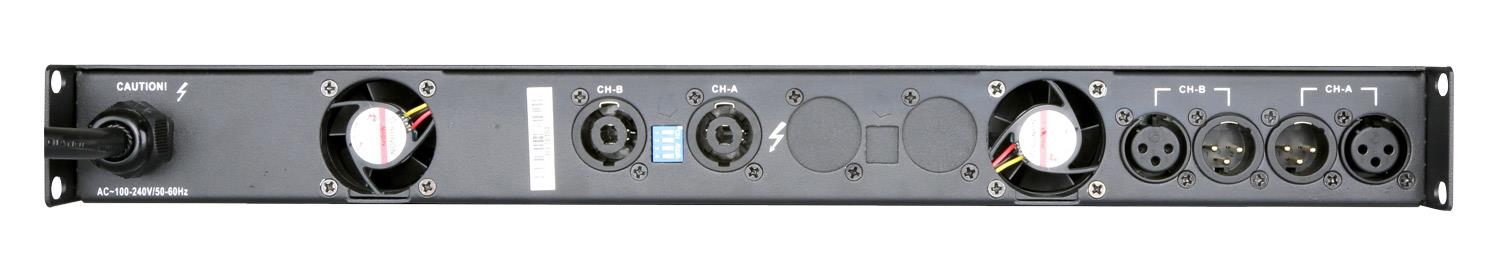

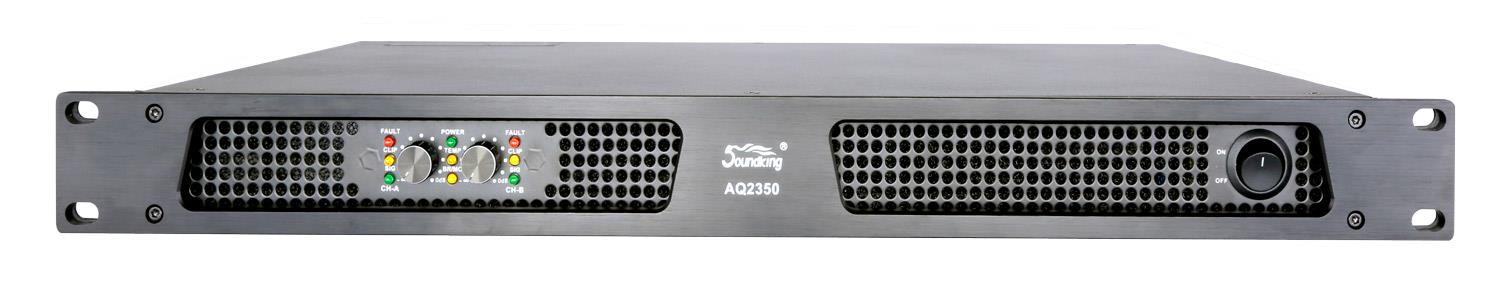

Soundking Amp AQ2350 2*350W 8 OHM
-high efficiency, energy saving
-active PFC, power factor 0.99
-high output to drive 2 Ohm load stably
-compact but solid structure
-perfect protection
-meet the requirement of production compliance and electromagnet compatibility.
-Variable speed fan for cooling.

-stereo/mono/bridge operation modes
-sensitivity 1Vrms,gain 32dB, 26dB for option
-XLR input connector
-professional speaker connector
-output over load/short circuit protection
-DC output protection
-70? power compression
-thermal protection
-Thermal indication

Rated power(EIAJ THD=1%,1kHz,2 CH working simultaneously):
8O/ stereo: 2×350W
4O/ stereo: 2×595W
2O/ stereo: 2×1015W
16O/ bridged: 700W
8O/ bridged: 1190W
4O/ bridged: 2030W

RMS output voltage(THD=1%,1kHz): 52.9V
Voltage gain: 34.5 dB
(1kHz, bypass LPF): 50V/us
Input sensitivity( rated output power ,1kHz): 1Vrms
THD+N (10% rated output power,):0.02%
IMD-SMPTE(10% rated output power,): 0.05%
DIM30(10% rated output power,): 0.05%
Crosstalk rejection(less than rated power, 20 Hz -1 kHz): =80 dB
Frequency response(10% rated output power,8O,20Hz – 20 kHz): ±0.2dB
Input impedance: 20kO(bal) ,10kO(unbal)
Damping factor(8O,20 Hz -100 Hz): =300
S/N ratio (A weighted,20Hz-20kHz): =105dB
Power supply: 90-260VAC, 50/60 Hz
protection: over load/thermal/DC output protection
dimension(W×H×D): 483×44×323mm
Net weight: 5.0kg
